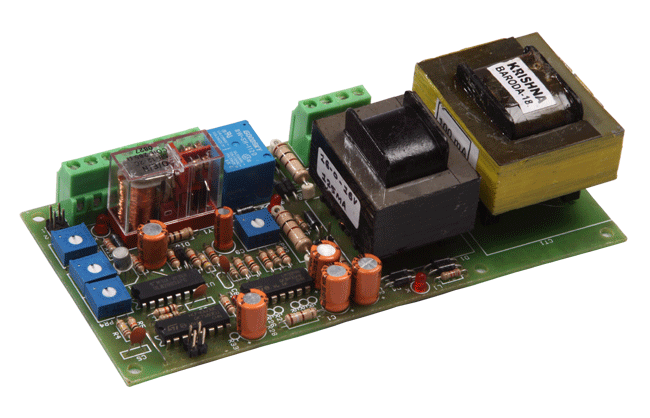

GE Presents Over Load Unit Which are used for Sensing of Current and tripping as per set current limit.

  • Initial Surge Current Bypass time Available
  • Bypass Time is Settable.
  • Current Limit Setting Available
  • Stepless Variation of Current Setting Available
  • Internal Or External Current Setting Potentiometer Available
  • Easy To operate
  • Din Rail Mount
  • Low Cost
  • Inbuilt Fuse for Protection
  • Operating Temperature -20 to 50 C
  • Model For 110 V AC Available
  • For Higher Rated Loads External CT can be used.
Specification:
Supply Voltage 230 VAC
Input 0-5 Amps (In terms of CT Ratio)
Output Potential Free Relay Contact 5 Amps
Reset NC Contact for resetting Trippings.

Applications:
  • Motor Protection
  • Test Equipments
  • Overload Protection
  • Special Purpose Equipments
